DISPOSABLE COMBINED SPINAL EPIDURAL ANESTHESIA MINITRAY
*Epidural Anesthesia Needle : 90mm
- 17G
- 18G
*Spinal Anesthesia Needle : 128mm
- 26G
- 27G
For the physician who will start on the procedure of CSEA
Unisis CSEA Minitray enables physicians to perform the procedure of CSEA with single puncture. The kit has simple construction yet contains reliable Epidural and Spinal anesthesia needles receiving high evaluation as quality products. Unisis CSEA Minitray is the one to be chosen as satisfactory entry-model for any physician who is thinking to try the procedure of CSEA.
| Product Name | Disposable Combined Spinal Epidural Anesthesia Minitray |
|---|---|
| Needle point Type | Epidural Anesthesia Needle (with Back-Eye)Huber Point, Belt Type Graduation and Wing |
| Package & delivery unit | Individually packed and 10 pcs/box |
| Product Trade Name | UNIEVER DISPOSABLE COMBINED SPINAL EPIDURAL ANESTHESIA MINITRAY |
| Other | E.O.G. sterilized(shelf life 5years) |
| G : Gauge /Color Code |
Epidural Anesthesia Needle Huber Point |
Catheter (20Gx1000mm) |
Spinal Anesthesia Needle | Protrusion Length of Spinal Needle | Other | REF (Code No.) |
|---|---|---|---|---|---|---|
| 18G | 90mm (with Back-Eye) |
Closede-Tip with 3 lateral eyes | Pencil point 27G×128mm | Max14mm |
*Catheter Connector
*Epidural Filter *Catheter Guide *L.O.R.Syringe(10mL) |
5530061 |
特徴
Epidural Anesthesia Needle
Bevel of outer cannula and inner stylet are ground at ideal angle to provide appropriate resistance at insertion and yet less invasiveness.
Depth Marking
Puncturing depth is visually recognizable by depth marking worked over the pipe surface.
Anti-coring process at bevel-heel
Heel part of the bevel is specially treated to enable smooth insertion of, and prevent damage to the catheter.
Catheter
Prevent obturation
Spring coil is embedded at the end tip to enhance the strength, which helps to prevent obturation of catheter caused by tight screwing of connector for long period.

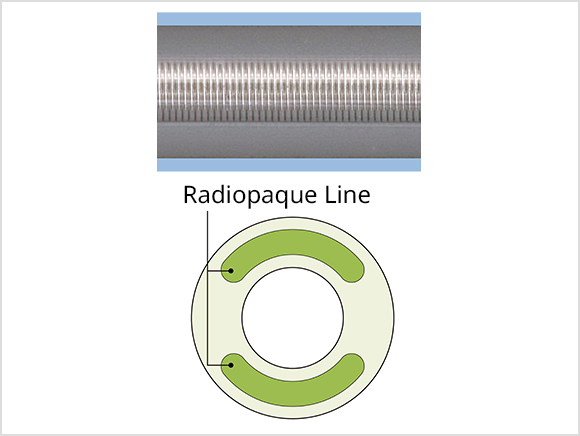

Easy detection
pRadiopaque agent is linearly embedded for easy detection of catheter piece left, in case of breakage inside body.
Catheter Connector
Ergonomically and smoothly designed connector enables easy detatch of catheter in spite of strong holding provided by screwing mechanism. Our unique technology delivered the firm holding of catheter, yet without obturation (patent issued).
L.O.R Syringe
Originally designed gasket enabled glass-like low resistance in sliding of plunger, in spite of plastic material.
Spinal Anesthesia Needle
Appropriate protrusion length of Spinal Needle out from Epidural Needle varies in 2 types, 13mm, and 14mm. As for the tip of the Spinal Needle, we offer both K-3 Lancet Point and less-invasive Pencil Point.
* Please inquire at us for sizes out of the above table.
